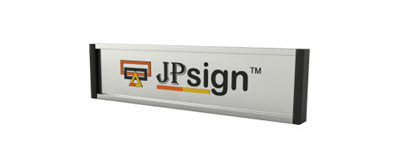

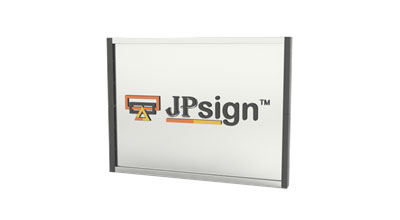

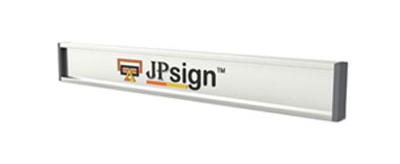

CU WALL & DESK SIGN

Model No.:CU10W, CU20W, CU40W, CU60W, CU10D, CU20D, CU40D, CU60D

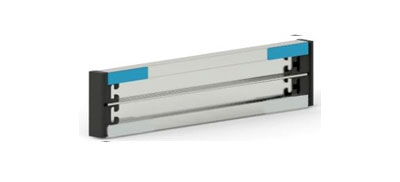

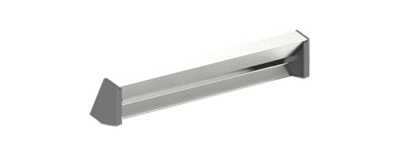

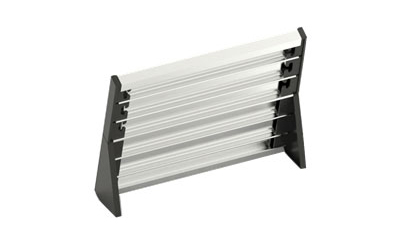

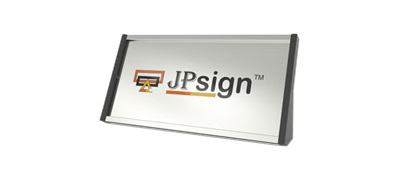

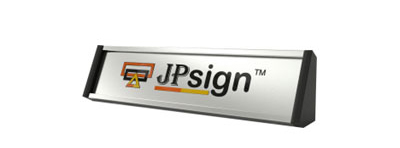

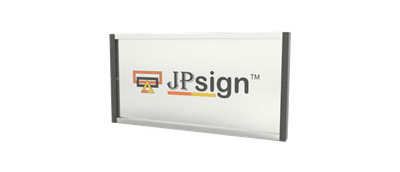

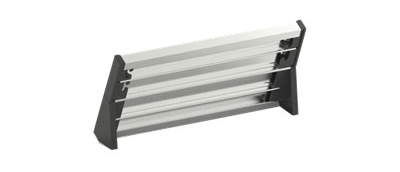

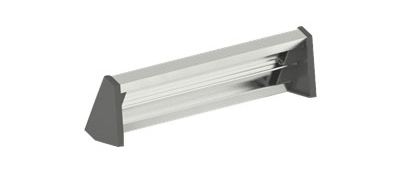

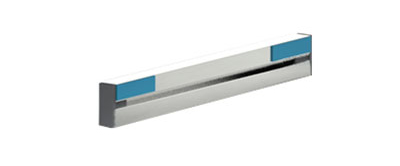

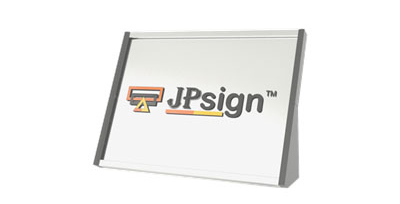

CU wall & desk signs’ components are included CU’s aluminum stands and caps. The wall caps complete the sign by closing both ends and allowing for mounting on any flat surface. The triangular desk caps are utilized to close the ends while enabling the sign to stand at the perfect angle on any desk. Both wall and desk caps can be removed for easy changes of the plate or label at any time.

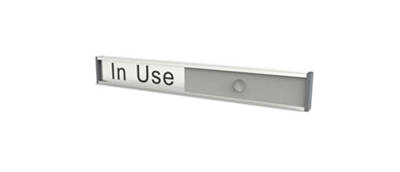

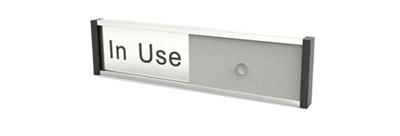

With the PVC slider, the sign can be used as the slide sign.

Wall mounted with screws is optional.

1” CU Wall & Desk Sign

Part #	Insert Size		Available Lengths
	Insert Height	Insert Thickness
CU10W&CU10D	1.0”	≤3/40”	5”	8”	10”
	25.4mm	≤1.9mm	127.0mm	203.2mm	254.0mm
Components: 1" stand*1pcs, 1" wall cap*2pcs, 1" left desk cap*1pcs, 1" right desk cap*1pcs, adhesive tape * 2pcs
Custom Lengths Available

2” CU Wall & Desk Sign

Part #	Insert Size		Available Lengths
	Insert Height	Insert Thickness
CU20W&CU20D	2.0”	≤3/40”	8”	10”	12”
	50.8mm	≤1.9mm	203.2mm	254.0mm	304.8mm
Components: 2" stand*1pcs, 2" wall cap*2pcs,2" left desk cap*1pcs, 2" right desk cap*1pcs, adhesive tape*2pcs
Custom Lengths Available

4” CU Wall & Desk Sign

Part #	Insert Size		Available Lengths
	Insert Height	Insert Thickness
CU40W&CU40D	4.0”	≤3/40”	6”	8”	12”
	101.6mm	≤1.9mm	152.4mm	203.2mm	304.8mm
Components: 4" stand*1pcs, 2" wall cap*4pcs, 2" left desk cap*1pcs, 2" right desk cap*1pcs, adhesive tape*4pcs
Custom Lengths Available

6” CU Wall & Desk Sign

Part #	Insert Size		Available Lengths
	Insert Height	Insert Thickness
CU60W&CU60D	6.0”	≤3/40”	6”	8”	12”
	152.4mm	≤1.9mm	152.4mm	203.2mm	304.8mm
Components: 6" stand*1pcs, 3" wall cap*4pcs, 3" left desk cap*1pcs, 3" right desk cap*1pcs, adhesive tape*4pcs
Custom Lengths Available

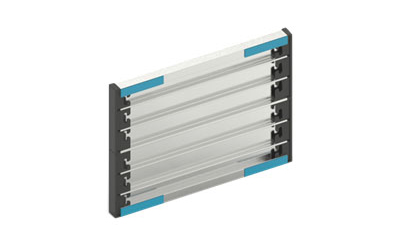

Optional Wall Mounted with Screws

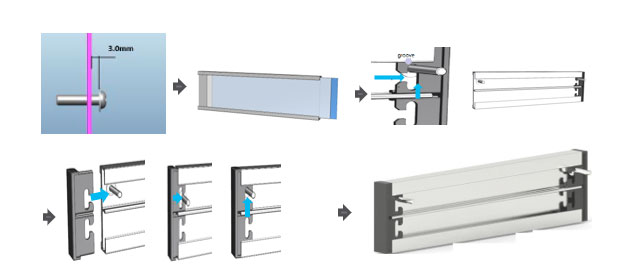

Fix 2pcs screws (4*30mm) & plugs on the wall with 0.12” (3.0mm) gaps, slide the insert into the stand, one wall cap clips with the screw head then install into the stand, align the groove of other wall cap to clip into the screw head of the other side, close other end of the body.

Holder Length Measurement of central hole for the installation of 2pcs screws  5" 4.45" (113.0mm) 6” 5.45" (138.4mm) 8” 7.45" (189.2mm) 10” 9.45" (240.0mm) 12” 11.45" (290.8mm)
